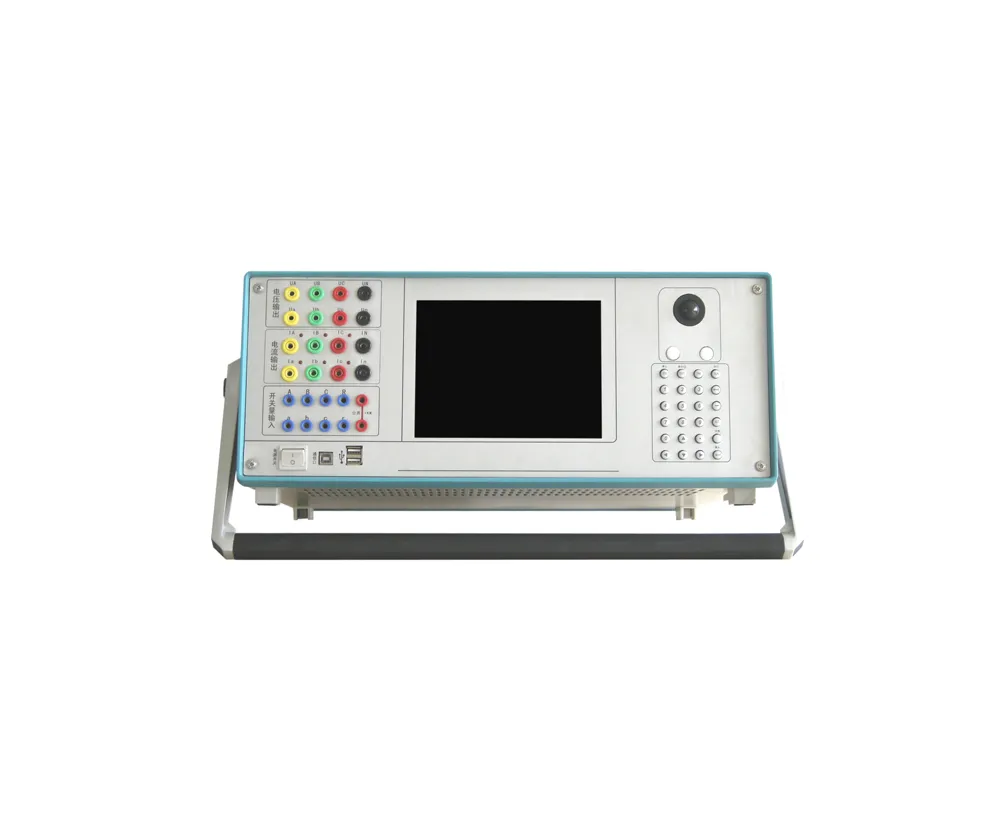

Key Features

Flexible Voltage and Current Output Combinations:** Capable of outputting up to 6 phases of voltage and 6 phases of current, the unit allows for arbitrary combinations to realize standard output modes—including 4-phase voltage/3-phase current, 6-phase voltage, 6-phase current, and 12-phase configurations. This versatility not only ensures compatibility with various traditional testing methods but also facilitates convenient testing for 3-phase transformer differential protection, as well as plant auxiliary power fast transfer and automatic transfer switch (ATS) schemes.

Operation Mode:** The device connects directly to an external laptop or desktop computer for operation, offering a convenient, fast, and stable user experience.

Novel High-Fidelity Linear Power Amplifier:The output stage consistently employs high-fidelity, high-reliability modular linear power amplifiers—rather than switching-type amplifiers—delivering exceptional performance. This design eliminates high- and medium-frequency interference at the test site and ensures smooth waveforms with excellent accuracy across the entire output range, from high currents down to minute currents.

High-Performance Main Unit:The output section is controlled by a DSP, featuring rapid processing speeds, robust real-time digital signal processing capabilities, wide transmission bandwidth, and high-resolution D/A conversion control. The resulting output waveforms exhibit high precision, minimal distortion, and excellent linearity. By incorporating numerous advanced technologies, precision components, and a specialized structural design, the device achieves a compact size, light weight, comprehensive functionality, and easy portability; it is ready for immediate operation upon power-up, making it ideal for mobile field testing applications.

Powerful Software Functionality:The software enables the execution of various large-scale, complex calibration tasks with a high degree of automation. It facilitates the convenient testing and scanning of various protection settings, fault playback, real-time storage of test data, vector diagram display, online report printing, and more. The 6-phase current output capability is specifically designed to facilitate comprehensive testing of 3-phase differential protection systems.

Independent Dedicated DC Power Output:** The unit features a dedicated, adjustable DC power output channel offering both 110V and 220V options.

Comprehensive Interface:The device is equipped with a USB communication port, enabling seamless communication with computers and other external peripherals.

Comprehensive Self-Protection Features:The unit features a rationally designed heat dissipation structure and robust, reliable hardware protection measures. These include a power supply soft-start function, software-based fault self-diagnostics, and output interlocking capabilities to ensure safe and reliable operation. Section 2: Rated Parameters

Parameters

Number of Current Channels: Standard 6-phase

Number of Voltage Channels: Standard 6-phase

AC Current Output Range: 30A/phase or 180A (6-phase parallel)

DC Current Output Range: 10A DC/phase

AC Voltage Output Range: 120V AC/phase

DC Voltage Output Range: 160V DC/phase

Rated Parameters

AC Current Output

Output per phase (RMS) with 6-phase current output: 0–30A | Output Accuracy: Class 0.2

Output per phase (RMS) with 3-phase current output: 0–60A

6-phase parallel current output (RMS): 0–180A

Allowable continuous operating value per phase (RMS): 10A

Maximum output power per phase: 300VA

Maximum output power during 6-phase parallel output (at max current): 1000VA

Allowable operating duration during 6-phase parallel output (at max current): 10s

Frequency Range (Fundamental): 20–1000Hz

Harmonic Order: 1st to 20th

DC Current Output

Current Output: 0–±10A per phase | Output Accuracy: Class 0.5

Maximum Output Load Voltage: 20V

AC Voltage Output

Phase Voltage Output (RMS): 0–120V | Output Accuracy: Class 0.2

Line Voltage Output (RMS): 0–240V

Phase Voltage / Line Voltage Output Power: 80VA / 100VA

Frequency Range (Fundamental): 20–1000Hz

Harmonic Order: 1st to 20th

DC Voltage Output

Phase Voltage Output Magnitude: 0–±160V | Output Accuracy: Class 0.5

Line Voltage Output Magnitude: 0–±320V

Phase Voltage / Line Voltage Output Power: 70VA / 140VA

Binary Inputs/Outputs (Switching Signals)

8-channel Binary Inputs

Dry Contacts: 1–20mA, 24V

Potential Contacts: "0": 0 to +6V; "1": +11V to ... +250 V

4 Pairs of Digital Outputs: DC 220 V / 0.2 A; AC 220 V / 0.5 A

Time Measurement Range

0.1 ms – 9999 s; Measurement Accuracy: <0.1 ms
