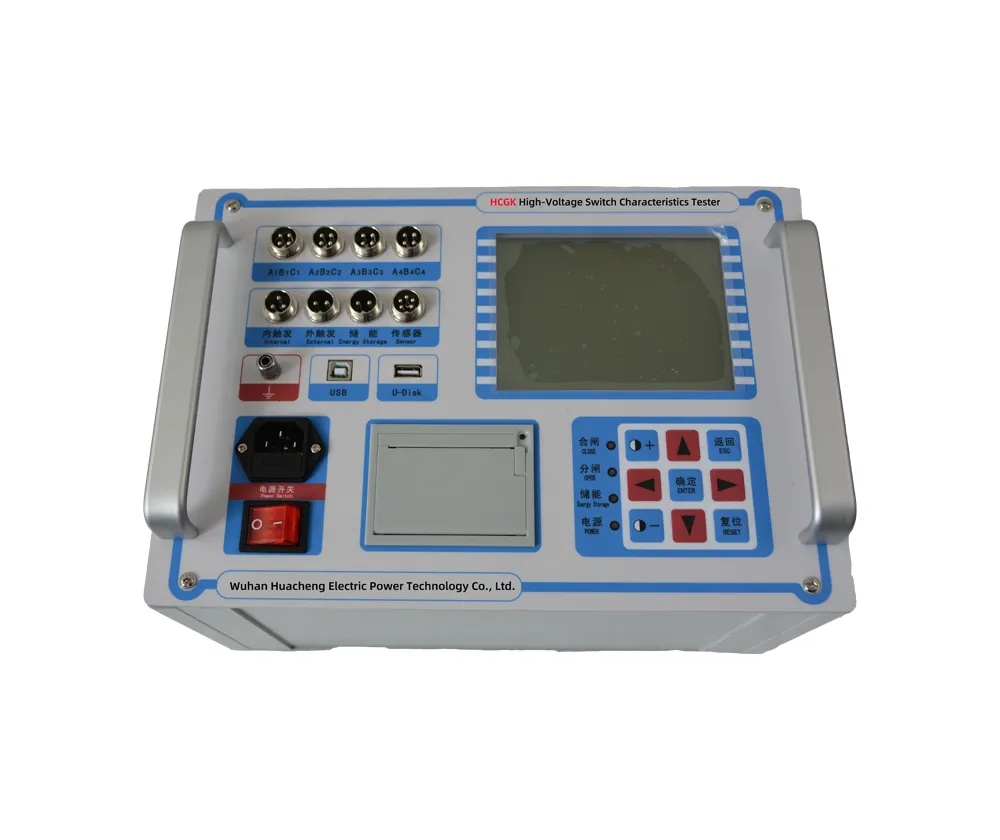

Features

 Suitable for mechanical characteristic testing of all models of SF6 switches, GIS combined electrical apparatus, vacuum switches, and oil-immersed switches manufactured both domestically and internationally.

 Possesses exceptional anti-interference capabilities, allowing for effortless testing and precise measurements even when conducted adjacent to the energized bypass busbars of a 500kV substation.

 Supports universal speed sensors (optional accessories), including linear displacement sensors and rotary speed sensors; installation is extremely convenient and straightforward.

 A single switching operation is sufficient to capture all mechanical characteristic test data and generate the corresponding waveform graphs.

 The main unit features internal storage for saving on-site test data

and includes a built-in real-time clock to facilitate the archiving of test dates and times.

 The main unit is equipped with a large-format, wide-temperature-range LCD screen featuring direct-viewing optics and a backlight; it displays all data and waveforms entirely in Chinese text, offers electronic adjustment of LCD contrast, and retains data via power-off memory.

 Features a Chinese-language menu interface for user-friendly operation; the instrument includes a built-in printer, enabling the rapid, on-demand printing of all test data and waveforms.

 The instrument is bundled with data analysis and management software, allowing for online operation in conjunction with a PC; test results can be output to various types of printers—including dot-matrix, laser, or inkjet models—to generate formal test reports, thereby enabling the computerization of on-site testing procedures.

Performance Features

Performance

Timing: Intrinsic opening and closing times for 12 contacts; synchronization within the same phase and between different phases.

 Reclosing: Timing for the Open-Close, Close-Open, and Open-Close-Open sequences for each contact: first opening time, first closing time, second closing time, dead time (current-free interval), and current-free duration values.

 Contact Bounce:Closing bounce duration, bounce count, bounce process, and bounce waveforms for each contact; opening rebound amplitude for each contact.

 Speed: Initial opening and closing speeds, maximum speed, and time-travel characteristic curves.

 Travel: Total travel, contact gap (opening distance), overtravel, overshoot, and rebound amplitude.

 Current:Opening and closing current values and current waveforms for the opening and closing coils.

 Operating Voltage:Features an internal, digitally adjustable DC 0–300V/20A power supply for circuit breaker operation; automatically performs low-voltage operation tests on the circuit breaker and measures the actual operating voltage values.

I. Technical Parameters

1. Operating Environment

Input Power: 220V ±10%, 50Hz ±10%         Atmospheric Pressure: 86–106 kPa

Temperature: -10–40°C                   Humidity: ≤80% RH

1.2. Safety Performance

Insulation Resistance: >2 MΩ

Dielectric Strength: Power supply to chassis—withstands a power-frequency voltage of 1.5 kV for 1 minute, with no flashover or arcing.

1.3. Basic Parameters

Time:     Range: 25000.0 ms          Minimum Resolution: 0.01 ms

Error: ① 250 ms range:       ±0.01 ms ±1 digit

② 2500 ms range:      ±0.1 ms ±1 digit

③ 25000 ms range:     ±1 ms ±1 digit

Speed:    Range: 20.00 m/s             Resolution: 0.01 m/s

Error: ① Within 0–2 m/s:    ±0.1 m/s ±1 digit

② Above 2 m/s:       ±0.2 m/s ±1 digit

journey

Current: Range 20.00 A; Resolution 0.01 A

Output Power: DC 0–300 V (Digitally Adjustable) / 20 A (Momentary Operation); Resolution 1 V

Dimensions: 360 mm (L) × 280 mm (W) × 300 mm (H)

Weight: 9 kg
