Product Introduction

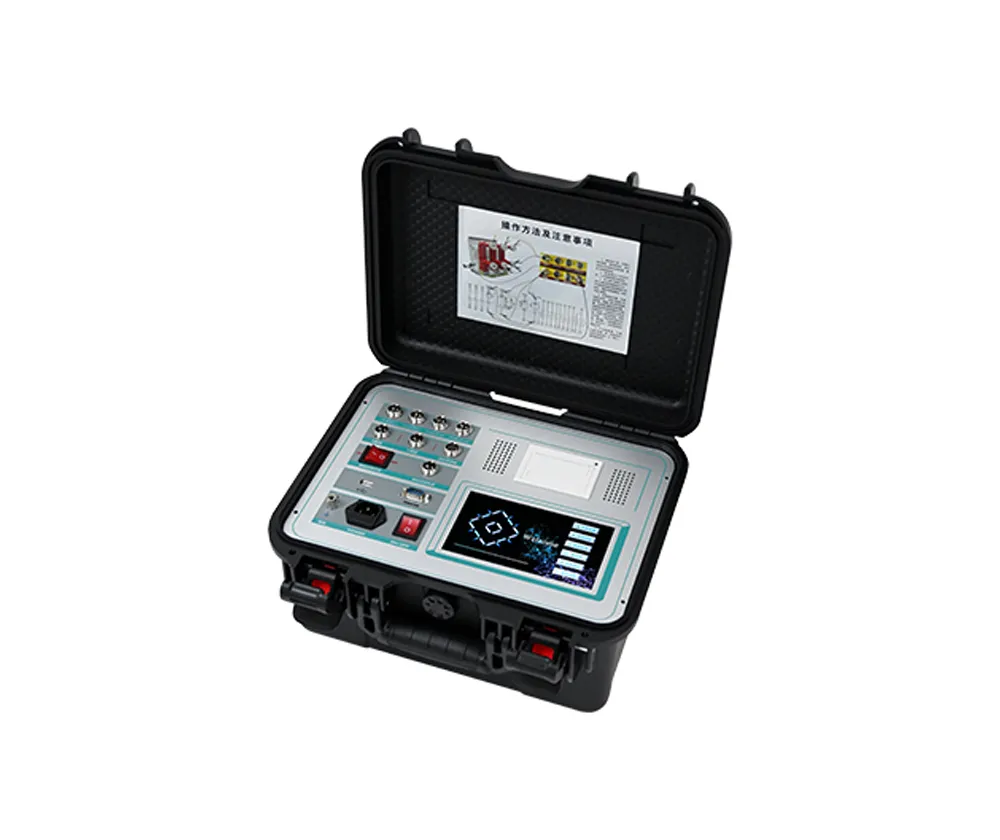

The HCGKC-G2 High-Voltage Switch Characteristic Tester is capable of precisely measuring the mechanical dynamic characteristic parameters of high-voltage circuit breakers across various voltage levels—including minimum-oil, bulk-oil, vacuum, SF6, and specialized types. It boasts numerous advantages, such as ease of operation, data accuracy, strong anti-interference capabilities, a compact form factor, and an elegant design.

Through the deep integration of a mobile app and Bluetooth technology, the HCGKC-G2 enables users to perform remote control, real-time data display, and data storage with just a simple touch of a fingertip. This not only enhances the convenience and efficiency of testing operations but also guarantees the integrity and authenticity of the data. The device fully supports the State Grid's Bluetooth communication protocol and seamlessly interfaces with Manufacturing Execution Systems (MES), thereby further strengthening the seamless integration and intelligent management of test data, and injecting powerful momentum into the intelligent transformation of enterprises.

Product Aliases: High-Voltage Switch Mechanical Characteristic Tester, Circuit Breaker Mechanical Characteristic Tester, High-Voltage Switch Dynamic Characteristic Tester, Circuit Breaker Dynamic Characteristic Tester, High-Voltage Switch Characteristic Tester, Circuit Breaker Characteristic Tester, High-Voltage Switch Comprehensive Characteristic Tester, High-Voltage Switch Timing Characteristic Tester, High-Voltage Switch Parameter Tester.

Technical Parameters

Product Features

Broad Applicability**

◆ Diverse Test Objects:** Supports the testing of 12 channels of metal contact breaks, comprising 6 main breaks and 6 auxiliary breaks.

◆ Comprehensive Data Acquisition:** For every operation of the circuit breaker, the device captures data and waveforms including timing, contact bounce count and duration, velocity, coil current, and resistance.

◆ Specialized Functions: Features capabilities such as energy storage control, automatic and manual low-voltage trip testing, circuit breaker endurance testing, and interlocking power supply simulation.

Superior Display and User Experience

◆ High-Brightness Display:Features a 7-inch high-brightness color screen with adjustable brightness, ensuring clear visibility even under direct sunlight.

◆ Convenient Operation:** Utilizes a menu-driven interface that supports one-touch operations as well as both Chinese and English text input.

◆ Single-Screen Display:** Simultaneously displays the status of all 12 breaks, timing data, travel curves, velocity profiles, and waveforms on a single screen, eliminating the need to switch pages to view data.

◆ Built-in Velocity Definitions:** Includes built-in velocity definitions for 21 common types of circuit breakers; users simply select the specific switch type to initiate a one-touch measurement.

Efficient Integrated Power Supply

◆ Integrated Power Source: Features an internal, integrated operating power supply, eliminating the need for an external secondary power source at the test site for quick and convenient use.

◆ Adjustable Power Output: Provides an adjustable DC power output ranging from 20V to 270V, with a maximum current capacity of 20A.

◆ Short-Circuit Protection:Equipped with a short-circuit protection function that cuts off voltage and current output within 1ms of detecting a short circuit, while simultaneously emitting an audible alarm to alert the operator to check the wiring.

◆ Dual-Circuit Design:** Features a unique dual-circuit power supply design, ensuring that if one circuit within the closing or tripping control loop fails, the other circuit remains fully functional for continued testing.

Accessories and Data Management

◆ High-Speed Printer:Equipped with a high-speed thermal printer, allowing for convenient, on-site, and immediate printing of test results.

◆ Data Interfaces:** Supports both USB drive and RS232 interfaces, enabling easy data storage to a USB drive or transfer to a computer for further analysis, archiving, and printing.

Reliability and Adaptability

◆ High Anti-Interference Capability:Features an internal anti-interference circuit design, ensuring reliable operation even within 500kV substation environments.

◆ Broad Environmental Adaptability: Designed for operation within an ambient temperature range of -20°C to +50°C, with a relative humidity limit of 90% or less.
