Product Introduction

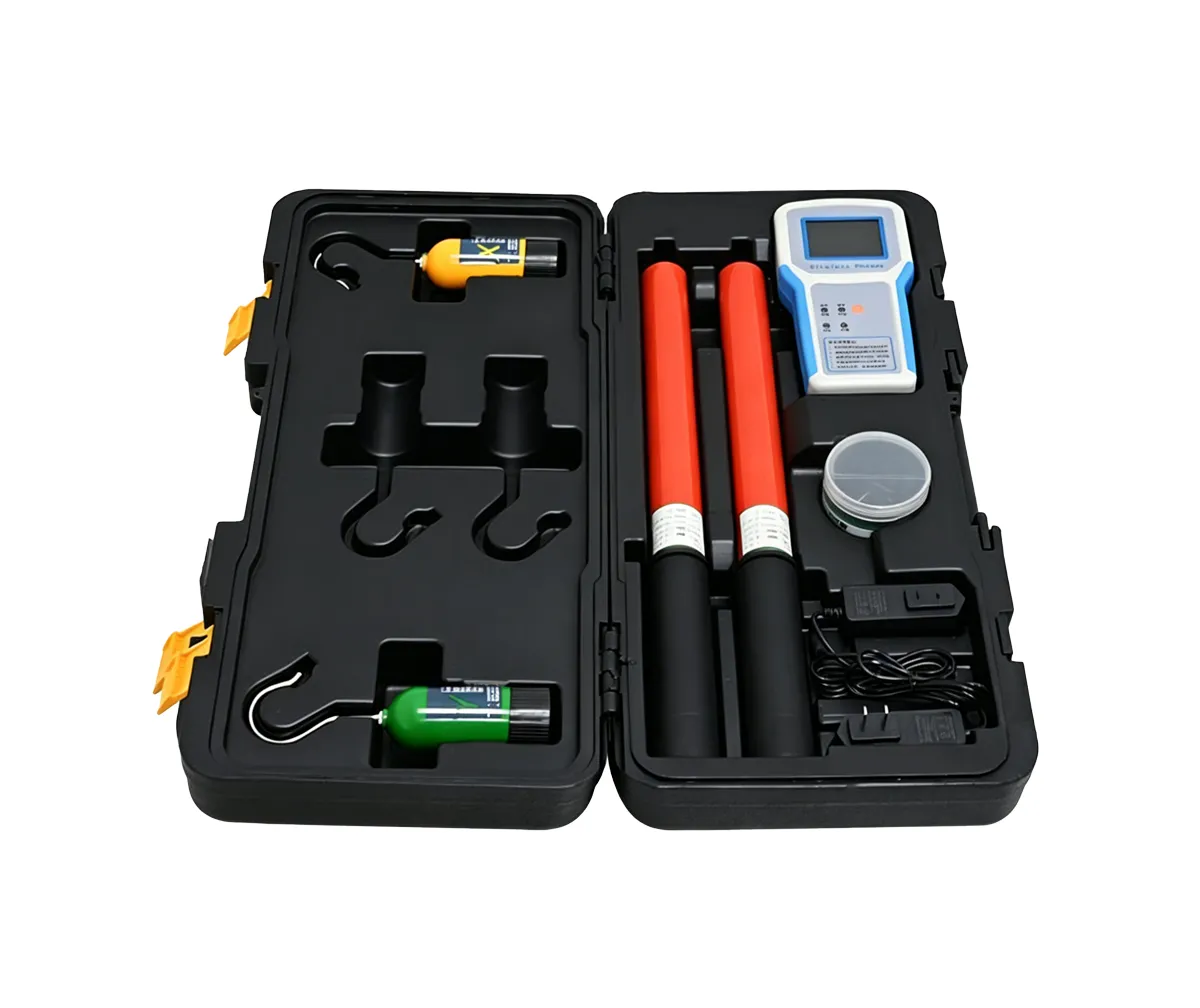

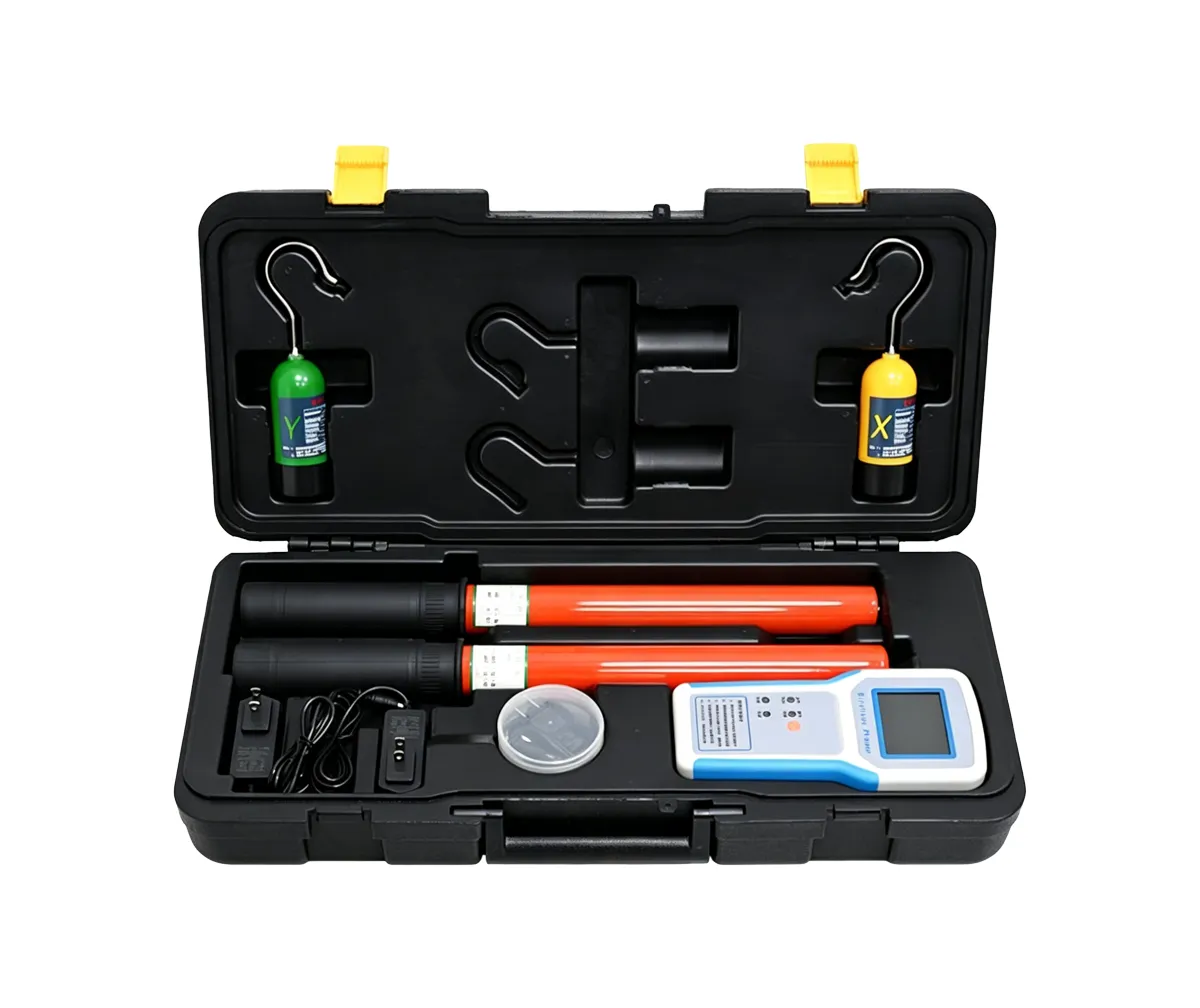

The HCHXY-201 Wireless High-Voltage Phase Verifier is designed for phase verification during the grid connection of two high-voltage lines or within a ring network. The HCHXY-201 is suitable for verifying the phase of primary AC transmission lines against secondary live-line indicators, and it also incorporates a high-voltage voltage detection function.

Utilizing wireless transmission technology, the HCHXY-201 offers safe and reliable operation as well as user-friendly convenience, effectively overcoming many of the drawbacks associated with traditional wired phase verifiers. Furthermore, the device is upgradable to include phase sequence detection and remote phase verification capabilities.

Product Aliases: Phase Verifier, Phase Verification Device, Wireless Phase Verifier, High-Voltage Phase Verifier, Voice-Prompted Phase Verifier.

Technical Parameters

Product Features

1. The HCHXY-201 Wireless High-Voltage Phase Verifier features a maximum line-of-sight transmission distance of approximately 130 meters between the transmitter and the receiving host; the maximum distance between two transmitters is approximately 260 meters.

2. Features real-voice audio prompts indicating "In-phase" or "Out-of-phase."

3. The HCHXY-201 Wireless High-Voltage Phase Verifier utilizes a 3.2-inch color screen to simultaneously display the phase difference between two lines, frequency, vector diagrams, and the in/out-of-phase results.

4. Automatic power-off function activates after one hour of continuous inactivity.

5. Both the transmitter and the receiving host feature built-in rechargeable lithium batteries and are supplied with a 5V charger.

6. The receiving host is equipped with a built-in 18650 lithium battery with a capacity of 2500 mAh. The transmitter is equipped with a built-in 14430 lithium battery with a capacity of 450 mAh.

7. Transmitter Low Battery Warning: Upon startup, three beeps indicate sufficient battery power; two beeps indicate usable power; and a continuous beeping sound indicates low battery power—please recharge the device promptly.
