Product Introduction

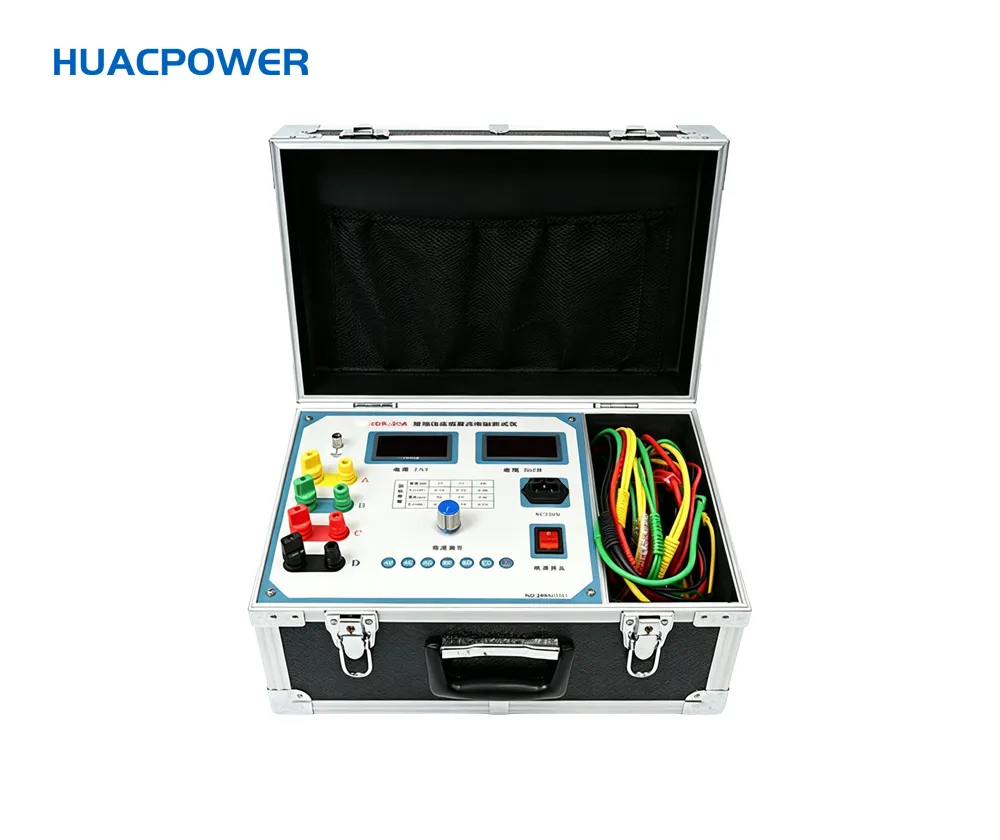

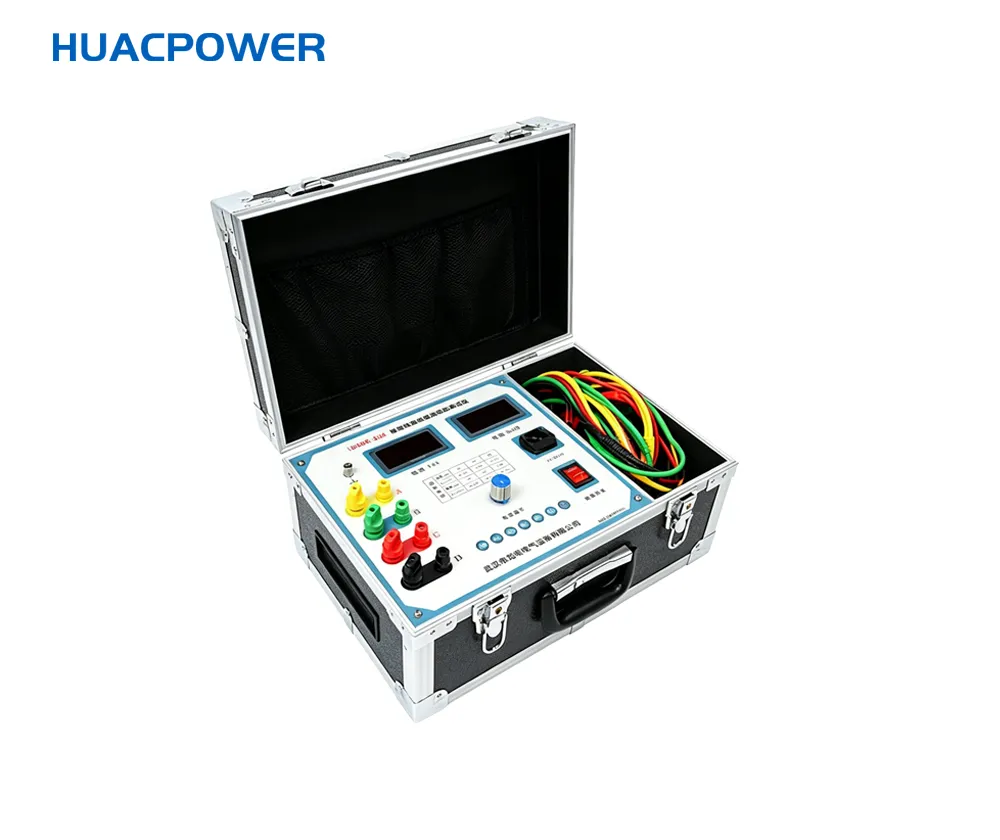

The HCJDR-30A Grounding Wire Group DC Resistance Tester was developed in accordance with the *Regulations for Preventive Testing of Electric Power Safety Tools and Equipment*. It is designed to assess the quality of the electrical contact between grounding wire lugs (terminals) and busbar clamps, and the multi-strand flexible copper conductors to which they are connected.

The HCJDR-30A Grounding Wire Group DC Resistance Tester employs the DC voltage-current ratio method and consists of several components, including a low-voltage, high-current constant current source and a measurement system. The constant current source utilizes advanced switching power supply technology, characterized by its strong anti-interference capabilities and high stability. The measurement section features an intuitive, high-brightness digital display meter, ensuring accurate and reliable measurements, while the circuit selection and switching operations are flexible and convenient.

Product Aliases: Grounding Wire Group DC Resistance Tester, Grounding Wire Group Resistance Tester, Grounding Wire Group Tester

Technical Parameters

Product Features

◆ Simple operation and intuitive criteria;

◆ Strong anti-interference capability and excellent stability;

◆ High-brightness digital display featuring simultaneous readouts for resistance values and current;

◆ Flexible circuit switching: Equipped with six selectable modes—"AB, AC, AD, BC, BD, CD"—allowing for the measurement of resistance between any two circuits without the need to detach the test clamps during testing, thereby ensuring convenient measurement;

◆ Specialized test clamps: Eliminates the need for manual detachment and reattachment of clamps during the testing process, facilitating easy setup and removal.
