Product Introduction

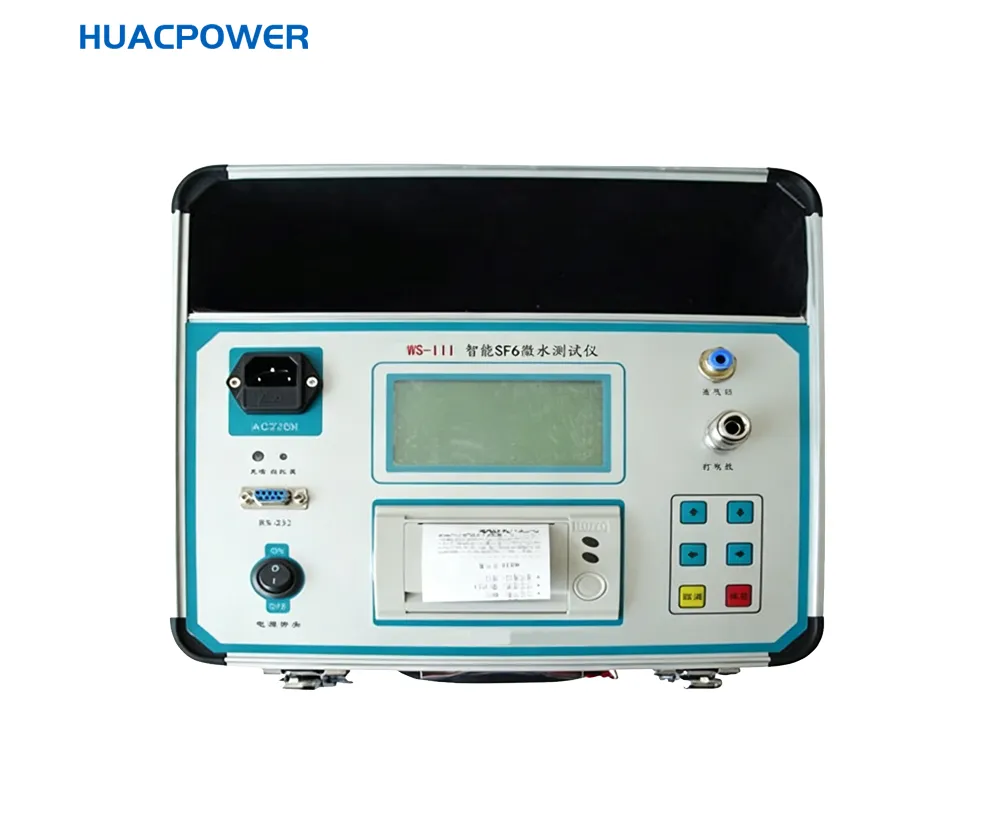

The HCWS-III SF6 Micro-Moisture Tester is a modern, high-performance, and intelligent measuring instrument recently developed by our company. In terms of measurement principle, degree of automation, and ease of use, this SF6 micro-moisture tester possesses advanced capabilities that are unparalleled by comparable instruments; notably, it incorporates European standard technologies to ensure data accuracy and reliability.

The HCWS-III SF6 Micro-Moisture Tester features a wide measurement range, rapid response time, and short measurement cycles, offering intuitive display and simple operation. This instrument is applicable across a very broad spectrum of fields, enabling humidity measurement for air, nitrogen, inert gases, and any gas free of corrosive media; it is particularly well-suited for measuring micro-moisture levels in SF6 gas. It is widely utilized in sectors such as electric power, petrochemicals, metallurgy, environmental protection, and scientific research institutions, offering exceptional cost-effectiveness.

The HCWS-III SF6 Micro-Moisture Tester employs an original, imported humidity sensor as its core sensing element. When trace moisture within the gas under test enters the sensor's sampling chamber, the water vapor is adsorbed into the sensor's micropores, causing a change in its capacitive impedance. The sensor amplifies and converts this change into a standard linear electrical signal, which is then processed by a microprocessor before being displayed on the LCD screen.

Product Aliases: SF6 Micro-Moisture Tester, SF6 Micro-Moisture Analyzer, SF6 Trace Moisture Tester, SF6 Moisture Tester

Technical Parameters

Product Features

1. Rapid Measurement: No pre-heating is required after powering on; the device quickly reaches dew point saturation.

2. Gas-Efficient: Gas consumption during measurement is minimal, at approximately 2L (at 101.2 kPa).

3. Self-Locking Connector: The SF6 micro-moisture tester features an original German-imported self-locking connector, ensuring safety, reliability, and leak-free operation.

4. Data Storage: Designed with high-capacity storage, the device can store up to 60 sets of test data.

5. Clear Display: The LCD screen directly displays key parameters, including dew point, micro-moisture content (ppm), ambient temperature, ambient humidity, time and date, and battery level.

6. Portable Design: The SF6 micro-moisture tester is lightweight, making it convenient to carry and operate.

7. Built-in Power Supply: The device features a built-in rechargeable battery capable of providing up to 8 hours of continuous operation on a single full charge.
