Product Introduction

The SF6 Gas Leak Detector represents a new generation of instruments designed for measuring gas leakage. Utilizing imported sensors, it features high sensitivity, excellent stability, rapid response times, ease of operation, and a wide detection range. It enables the quick and accurate qualitative and quantitative detection of leak points and annual leakage rates in SF6 circuit breakers and Gas Insulated Switchgear (GIS). This instrument is ideally suited for use by power supply departments, installation and maintenance units, and electric power research institutes. Furthermore, it serves as an excellent complementary instrument for SF6 high-voltage switchgear manufacturers—both for their SF6 electrical equipment and for export products—thereby enhancing the overall quality and standing of their product lines.

Product Aliases: SF6 Leak Detector, SF6 Gas Qualitative Leak Detector, SF6 Qualitative Leak Detector, High-Precision SF6 Gas Leak Detector, Sulfur Hexafluoride Qualitative Leak Detector, Intelligent Sulfur Hexafluoride Qualitative Leak Detector.

Technical Parameters

Product Features

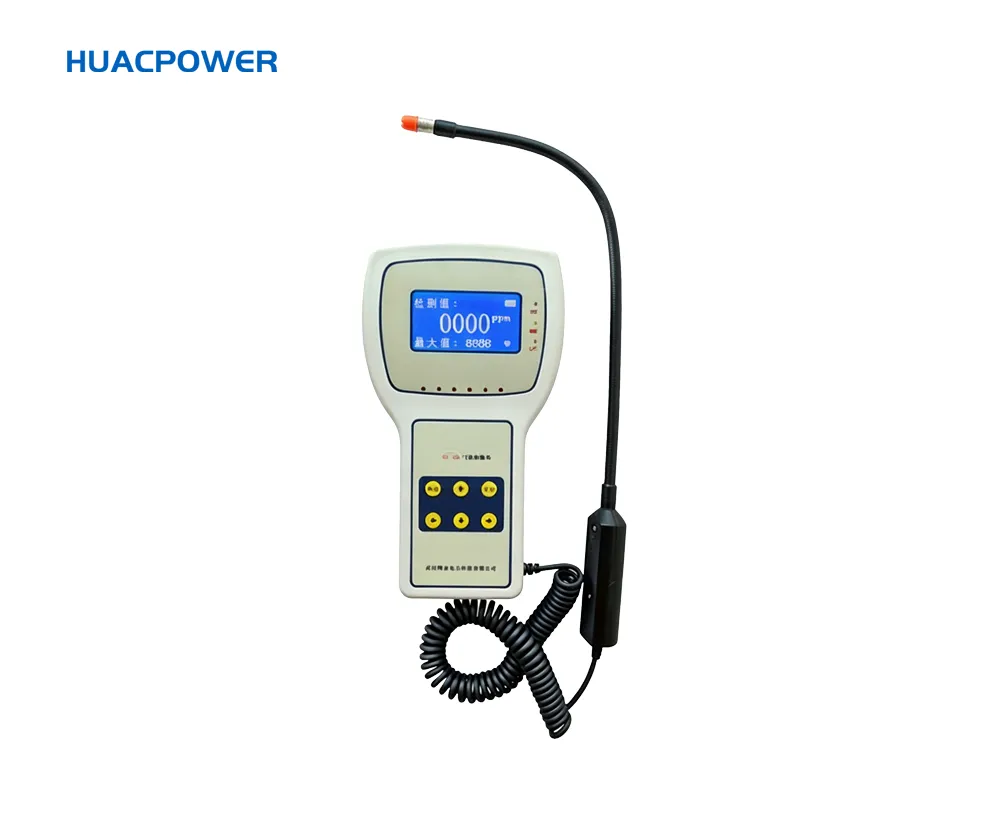

1. Compact and lightweight: Features a portable, handheld "snake-style" probe with a highly flexible connecting cable.

2. High Sensitivity: Boasts super-sensing capabilities, responding to even minute traces of halogen gases; capable of detecting gas leakage rates exceeding 3g per year.

3. Wide Measurement Range: The instrument is capable of detecting SF6 leakage volumes across the entire range of potential leak rates associated with SF6 switchgear.

4. High Accuracy: The instrument utilizes advanced calibration methods to establish a highly accurate calibration curve, thereby enhancing the credibility of SF6 detection results and the precision of quantitative measurements.

5. Intuitive Display with Audible and Visual Alarms: Features a digital LCD with a backlight, offering a simple and intuitive user interface. The instrument triggers both audible and visual alarms whenever the presence of SF6 is detected.

6. Rapid Response and Quick Recovery: Incorporates a novel circuit architecture that accelerates response times and minimizes recovery periods, greatly facilitating efficient on-site inspections.

7. Rechargeable Lithium-ion Battery: Offers extended operating life, allowing for over 5 hours of continuous use on a single charge—making it ideally suited for field operations, SF6 high-voltage switchgear manufacturing plants, and research institutions.
