The fully automatic dielectric loss tester is a high-precision instrument designed for the on-site, fully automatic measurement of the dielectric loss tangent and capacitance of various high-voltage power equipment at power plants, substations, and similar facilities. High-voltage short-circuit protection CVT overvoltage protection
Send Inquiry
The transformer low-voltage short-circuit impedance tester is easy to operate and provides intuitive results, making it a rapid tool for on-site testing to detect winding deformation in transformers. It performs synchronous data acquisition and automatically calculates the percentage impedance error. It automatically completes three-phase testing without the need to reconnect test leads.
Send Inquiry
The HVBYKC-III On-Load Tap-Changer (OLTC) Tester is designed in accordance with the general technical specifications of DL/T 846.8-2004, which mandate the verification of OLTC operation sequences and the measurement of switching times. It enables precise measurement of parameters such as transition time, transition waveform, transition resistance, and three-phase synchronization, making it an ideal instrument for testing on-load tap-changers.
Send Inquiry
The HVTRC Transformer Loss and Capacity Tester is a new instrument designed to address issues such as electricity consumers evading basic electricity charges and unauthorized capacity expansion; it is a high-precision instrument specifically designed for measuring transformer capacity and characteristic parameters.
Send Inquiry
Based on the measurement of characteristic parameters of internal transformer windings, the HCRZ-3000 Transformer Winding Deformation Tester employs the Frequency Response Analysis (FRA) method for internal fault detection—a technique currently being developed and refined in advanced nations worldwide—to accurately diagnose internal faults within transformers.
Send Inquiry
1. Data acquisition and control are managed by a high-speed, highly integrated microprocessor. 2. Communication between the laptop and the instrument is established via a USB interface. 3. The hardware core employs dedicated, high-speed Digital Direct Synthesis (DDS) sweep frequency technology (originating from the USA); through testing, it can accurately diagnose faults such as winding distortion, bulging, displacement, tilting, inter-turn short-circuit deformation, and inter-phase cont...
Send Inquiry
When utilizing a high-precision loop contact resistance tester, the measured values are often inflated—by several orders of magnitude—due to the influence of oil films and oxide layers present between the contact points; consequently, these readings fail to accurately reflect the true contact resistance value. High Current, High Stability High Precision, Intelligent Operation Multiple Communication Modes
Send Inquiry
Used for measuring the contact resistance of high-voltage switchgear (such as circuit breakers, disconnectors, etc.). Test Current: 50A / 100A (Selectable) Accurate measurement, stable performance, and high resolution.
Send Inquiry
Specifically designed for low-voltage operation, trip/close, and energy storage testing of high-voltage switchgear; resolves voltage drop issues to ensure precise and reliable testing results. Zero Load Voltage Drop:** Features advanced dynamic compensation technology to ensure stable, undiminished output even under load. Comprehensive Trip, Close, and Energy Storage Testing:** Enables one-touch verification of switchgear operational reliability, covering all relevant testing scenarios. Press...
Send Inquiry
The HCBT-Z Comprehensive Transformer Test Bench complies with relevant national standards, including GB/T4776, GB/T5169, and GB/4285-1993. This test bench is primarily designed to evaluate the no-load and load characteristics of power transformers and distribution transformers; it is also capable of performing double-frequency induced voltage tests and power-frequency withstand voltage tests on the transformers under test.
Send Inquiry

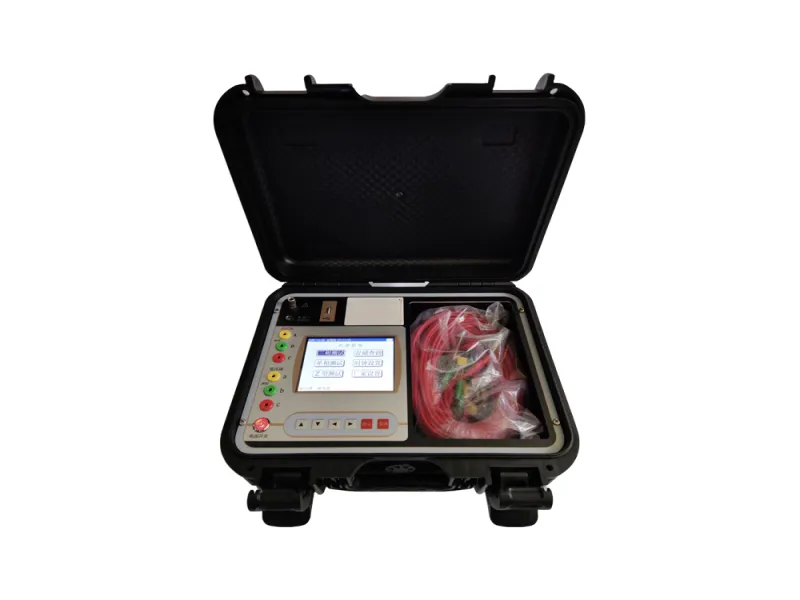

Detects the condition of transformer windings and tap changers, and identifies defects such as coil short circuits, connection errors, and inter-turn short circuits. Performs single-phase or three-phase transformer turns ratio measurements in a single operation. Satisfies the turns ratio testing requirements for various large, medium, and small transformers. Features testing capabilities for PTs and Z-connected transformers.
Send Inquiry
This series of instruments overcomes the limitations inherent in traditional ratio bridge testing. Featuring a large-screen color LCD with English menu prompts, the device offers simple and intuitive operation. It performs simultaneous three-phase ratio measurements in a single pass, delivering rapid testing speeds, high accuracy, and comprehensive protection functions.
Send Inquiry
<p>This instrument is primarily used to measure the transition waveforms, transition times, instantaneous transition resistance values, and three-phase synchronicity of transformer on-load tap changers.</p>
Send Inquiry
<p>This instrument is a multi-functional measuring device, equivalent to three conventional test instruments: an active transformer capacity tester, a transformer characteristic parameter tester, and a transformer winding material analyzer.</p>
Send Inquiry

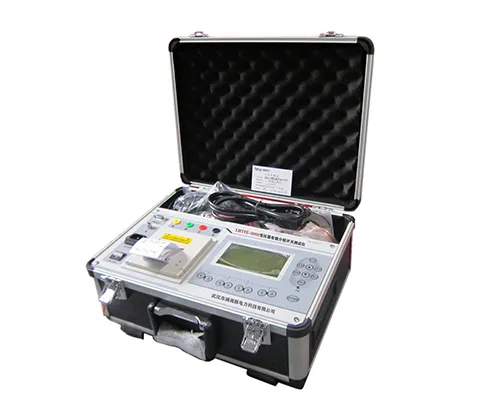

<p>The Power Transformer On-Load Tap Changer Tester is a comprehensive measuring instrument designed for measuring and analyzing the electrical performance parameters of on-load tap changers in power transformers and special transformers within power systems.</p>
Send Inquiry
<p>The Comprehensive Tester for Transformer Winding Deformation incorporates two testing methodologies—the Frequency Response Method and the Low-Voltage Short-Circuit Impedance Method—to measure and diagnose the windings of large and medium-sized transformers. By comprehensively reflecting the winding characteristics of the transformer, it stands as the nation's first product to feature this industry-leading technology.</p>
